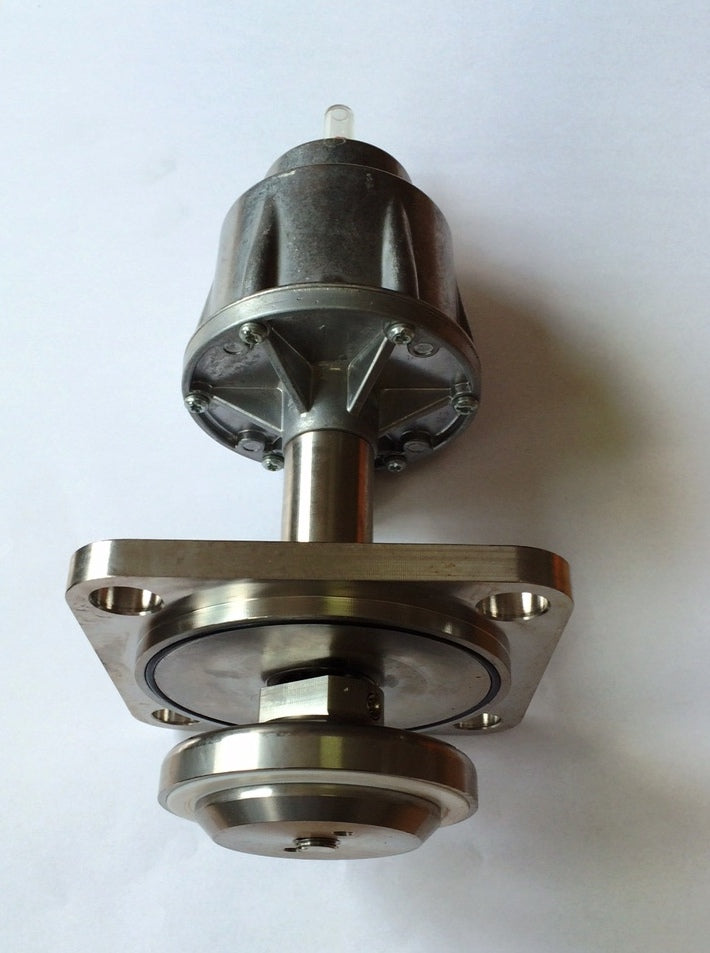

Seat Valve for Media Block DN70-70 G2
Upper part media valve
- nominal size: 70mm
- drive: 70mm
- closing against media-flow - normally open
- art-no 130106577
- 435.70-2-4
accessories:
| description | article-no |
|---|---|
| Optical Position Indicator | 130104953 |
| Seat for Valve | 249005144 |
| Seal Set for Valve | 330101022 |
seal set includes:
| pos | description | qty | article-no |
|---|---|---|---|
| 03 | Circlip | 1 pc | 160013852 |
| 05 | Slide Bearing | 1 pc | 160050103 |
| 08 | Seal Ring Spring Balanced | 1 pc | 249005116 |
| 13 | Sleeve | 1 pc | 249005127 |
| 14 | Seat Seal | 1 pc | 160004782 |
| 17 | Spring | 1 pc | 160015420 |
| 21 | Lip Ring | 1 pc | 160002304 |
| 22 | O-Ring | 1 pc | 160004275 |
| 24 | O-Ring | 1 pc | 160004284 |
| 34 | O-Ring | 1 pc | 160005331 |
