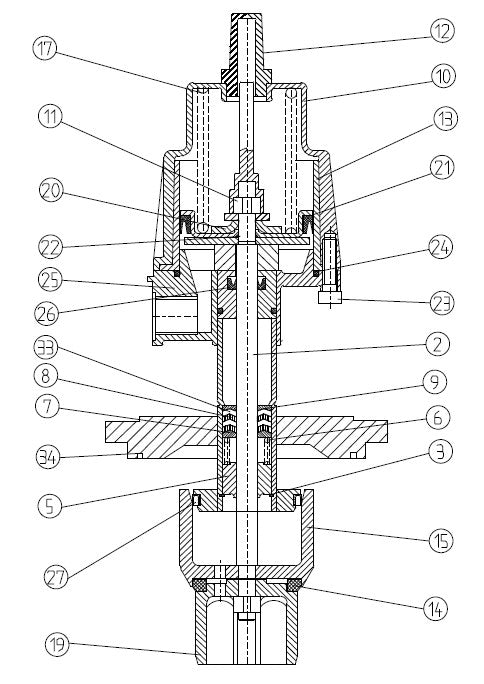

Seat Valve for Media Block DN32-50 E1
Upper part media valve
- nominal size: 32mm
- drive: 50mm
- pressure released - normally closed
- art-no 130106571
- 434.32-1-3
accessories:
| description | article-no |
|---|---|
| Seat Valve for Media Block | 130106571 |
| Seal Set for Valve | 330101002 |
| Spindle | 330106543 |
| Press.relief Cyl. | 330106545 |
| Control Cone | 330106544 |

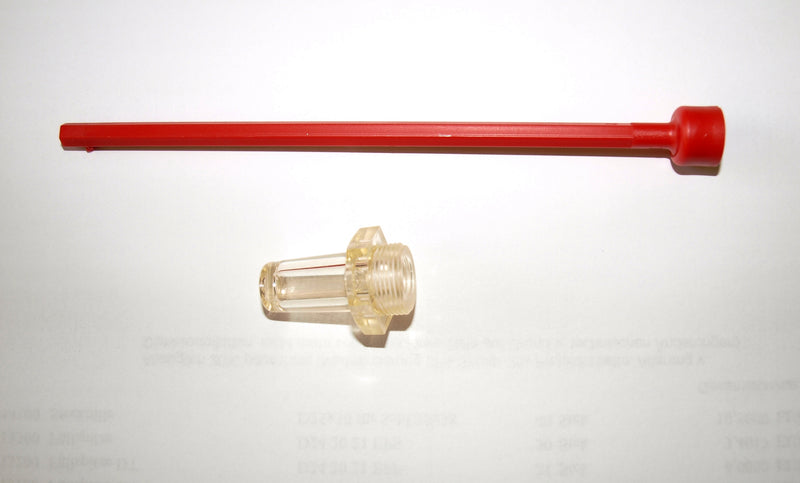

| Optical Position Indicator | 130104953 |

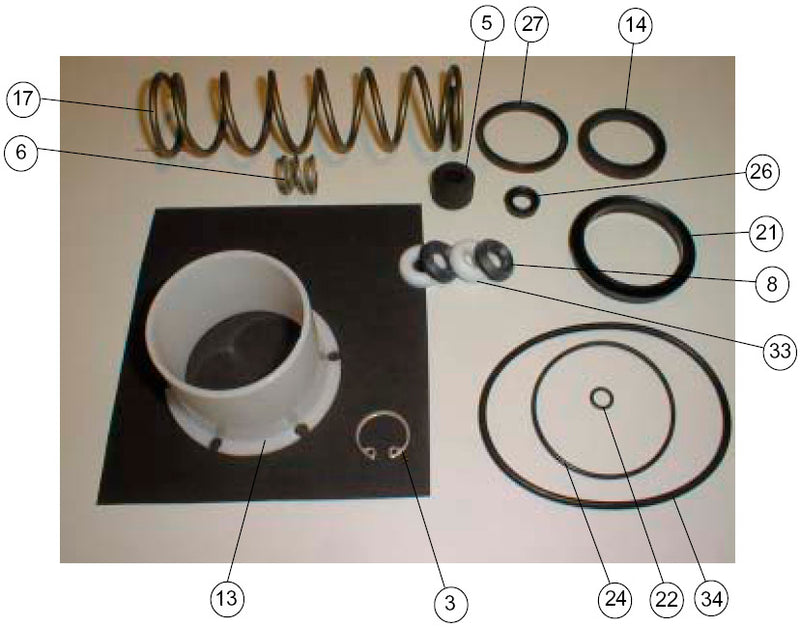

seal set includes:
| pos | description | qty | article-no |
|---|---|---|---|
| 03 | Circlip | 1 pc | 160013851 |
| 05 | Guide Bushing | 1 pc | 249005122 |
| 06 | Spring | 1 pc | 160015410 |
| 08 | Chevron | 2 pc | 160001551 |
| 13 | Bushing | 1 pc | 330101141 |
| 14 | Seat Seal 24x34x5 | 1 pc | 249005105 |
| 17 | Spring | 1 pc | 160015413 |
| 21 | Lip Ring | 1 pc | 160002303 |
| 22 | O-Ring | 1 pc | 160007201 |
| 24 | O-Ring | 1 pc | 160007251 |
| 26 | Lip Ring | 1 pc | 160001509 |
| 27 | Seal Ring Spring Balanced | 1 pc | 249005111 |
| 33 | Chevron | 3 pc | 160001552 |
| 34 | O-Ring | 1 pc | 160005445 |
| 99 | Lock Hexagon Nut | 1 pc | 160177052 |
